4kW Q Cell PV System

Starting from: £4999 inc VAT

4kW Q Cell PV System – Solar Only Package*

Cost shown includes 4kw set up which is enough energy to support the electrical requirements of an average 3 bedroom house (this is dependent on the age of the property and how well insulated it is).

Q Cell solar panels deliver superb performance in ‘real world’ conditions, and first-class performance guarantees of 98% in the first year and an amazing 86% after 25 years. The leading edge interconnections ensure higher power every day generation.

*This is an example package based on set criteria, your quote would be bespoke to your property

This quote is based on;

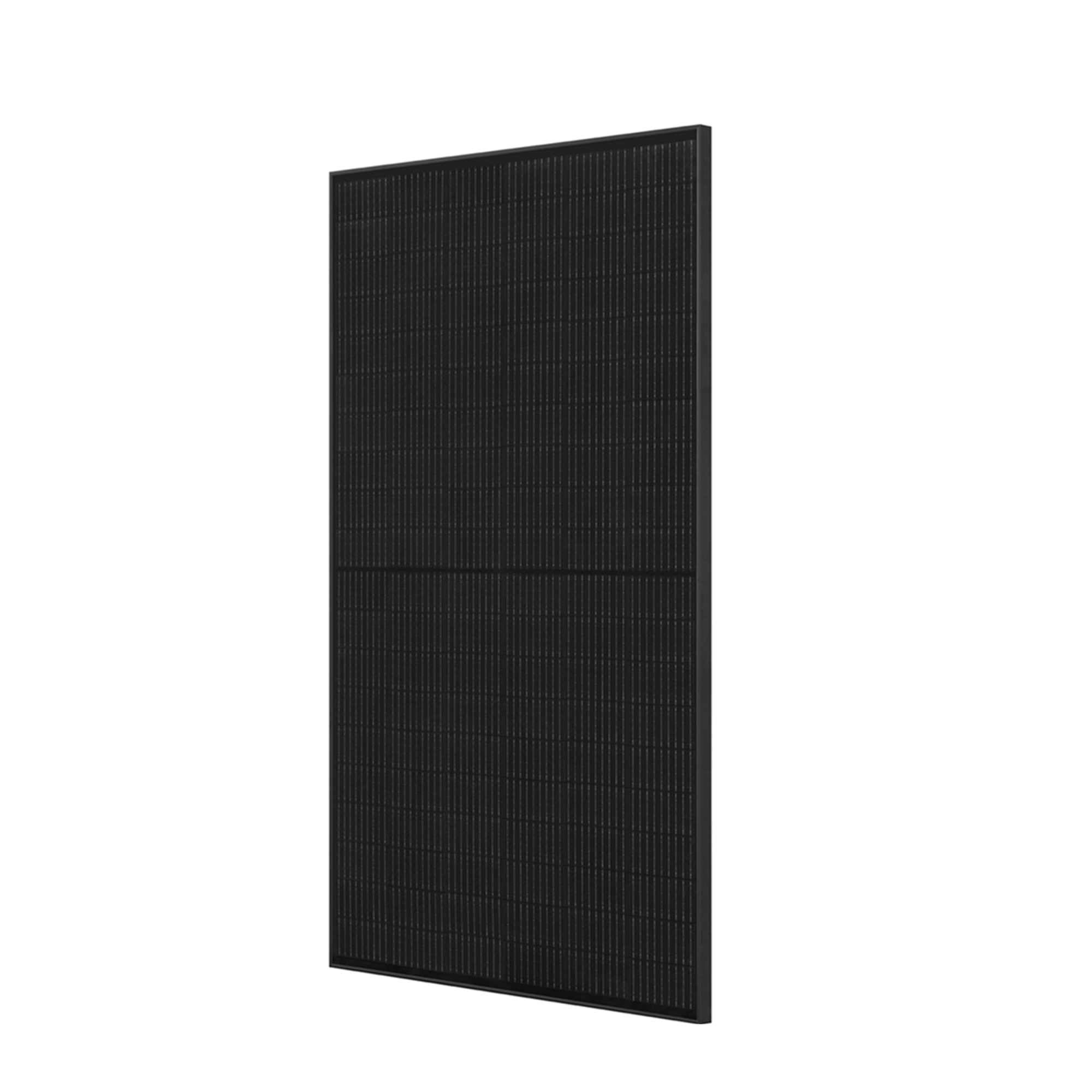

  • 12 x Q Cells 335W Mono Q Peak Duo G9 all black MC4 (covering 21.55mtrs squared)
  • 12 x SolarEdge Optimisers
  • 1 x SolarEdge Inverter
  • Dekittle Lead multicable solar flashing
  • 8 x End clamps
  • 20 x Middle clamps
  • 32 x Roof hooks
  • 8 x VarioSole+ End Caps – black
  • 4 x VarioSole+ connectors for rail
  • 8 x Variosole+
  • 1 x MC4 terminated cable
  • 1 x MC4 Connector twin pack
  • 1 x 4mm single core DC cable 25m – Black
  • 1 x Single phase AC switch disconnector
  • 1 x Emlite 1-ph generation meter 100A
  • 1 x PV on roof hazard labels pack



Additional information

The configuration is based on an installation taking place in a village location in Norfolk, more than 20kms from the sea and with no shading on the property. With the roof pitch being 30degrees



Installation data – New MCS Calculation

Installed capacity of PV system – kWP (stc) = 4.020KWp

Postcode region 12



Calculation

kWh/kWp (KK) from table 953 kWh/kWp

Shade factor (SF) 1.00

Estimated annual output 3,831 kWh



MCS Wind Loading Calculation

Wind Zone: 3-SV

Peak Pressure: 873 Pa

Altitude Correction Factor: None

Topography Correction Factor: None

Wind pressure: -589 Pa



Snow Loading Calculation

Snow Load: 500 pa

Altitude Correction: None

Pitch Adjustment: 0.800

Adjusted Snow Load: 400 Pa



*Cost also includes all setting up, commissioning of the system and guide how best to make use of your PV system.

*The prices of the EV chargers illustrated are shown with the OLEV grant of £350 already being deducted.
